Digital Mega Servo Hs-5805Mg: Universal

Digital Mega Servo Hs-5805Mg: Universal

$131.49 CAD
$131.49 CAD
Sale Sold out

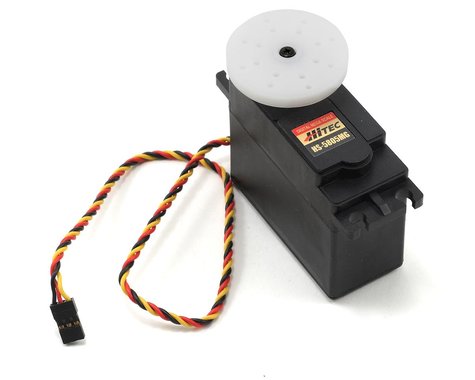

The HS-5805MG Digital Mega Servo is designed to take on the forces from today's giant 1/5 scale vehicles. Hitec developers crafted it with great power and strength, as well as the technology of their digital circuit for ultimate control. The HS-5805MG is the digital counterpart to the HS-805MG, offering the same durability but with added torque and programmability.

Features

  • Programmable Digital Circuit
  • Large 8mm Output shaft
  • Dual Ball Bearings
  • Heavy Duty Metal Gear Train
  • Water and Dust Resistant Case

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail-Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset.

S-5805MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.14
Maximum Torque Range oz. / in. 275 ~ 343
Maximum Torque Range kg. / cm. 19.8 ~ 24.7
Current Draw at Idle 3 mA
No Load Operating Current Draw 520 mA
Stall Current Draw 6,000 mA
Dead Band Width 5 µs

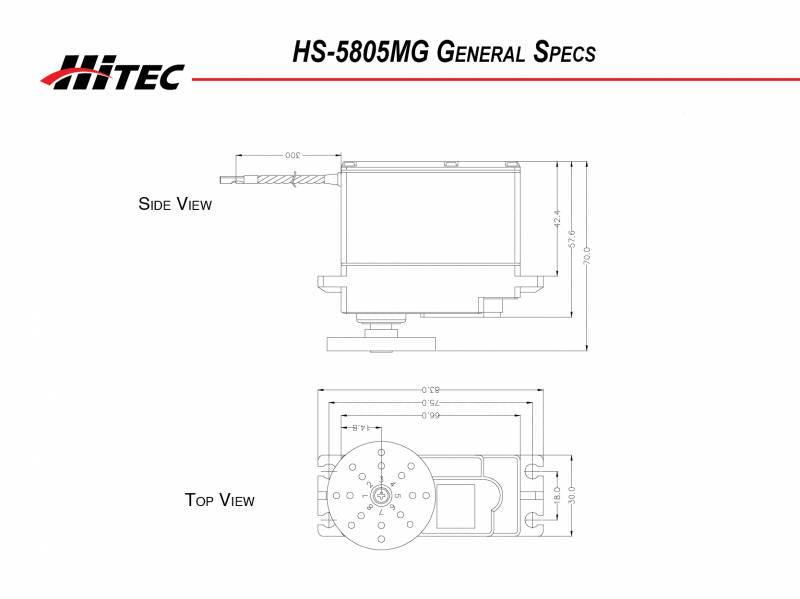

Physical Specifications
Dimensions (Inches) 2.60 x 1.18 x 2.27
Dimensions (Metric) 66.0 x 30.0 x 57.6

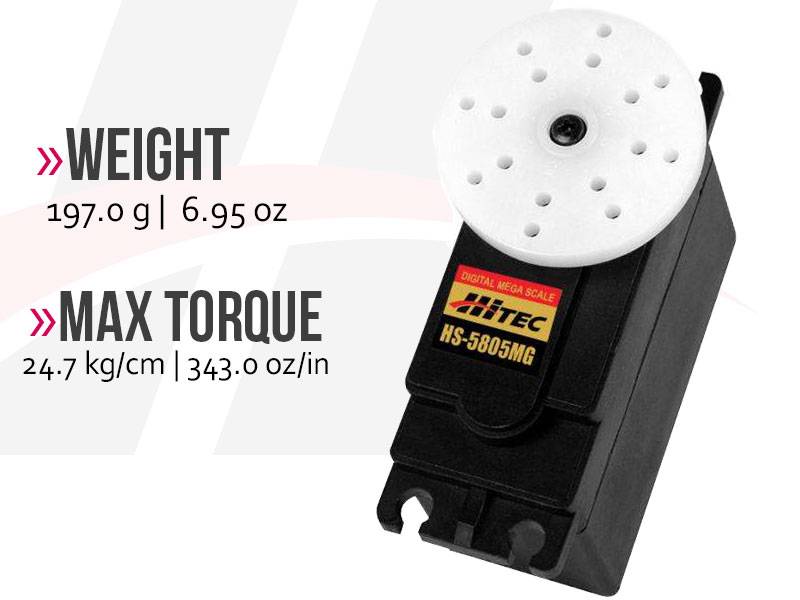

Weight (Ounces) 6.95
Weight (Gram) 197.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Mega 15
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane N / A
Sailplane N / A
3D Performance N / A
Scale > 40%
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/4th & 1/5th
Monster Truck 1/4th & 1/5th
Buggies 1/4th & 1/5th
Truggies 1/4th & 1/5th
Short Course / Truck 1/4th & 1/5th
Crawlers N / A
Sail Boat = >1M & Scale
Power Boat 1/5th & Up Scale
