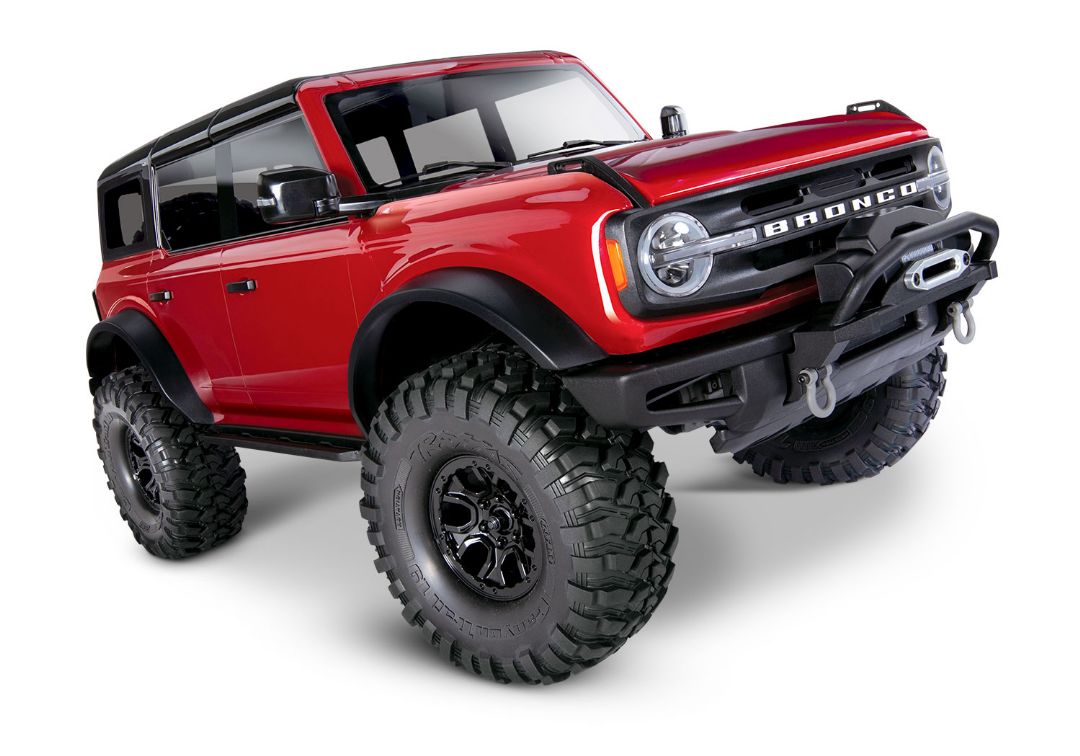

Traxxas TRX4 Scale and Trail 2021 Ford Bronco 1/10 Crawler, XL-5 HV, Titan 12T - Red

$769.99 CAD

Sale Sold out

Product variants

Quantity

MODEL 92076-4: TRX-4 Scale and Trail^® Crawler with 2021 Ford^® Bronco Body: 1/10 Scale 4X4 Trail Truck, Fully-Assembled, Waterproof electronics, Ready-To-Drive^®, with TQi^™ 2.4GHz 4-channel Radio System, XL-5 HV Speed Control, High/Low Transmission, Remote Locking Differentials, and painted body.

The legend is back. After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

INNOVATION

Radically innovative technology combines with precision engineering to create a completely new breed of scale crawler…Only from Traxxas.

DETAILS

The TRX-4’s extreme off-road capability lies in the technology beneath its rugged exterior.

Vehicle Specs

Length (overall):	22.98 inches (584mm)
Length (chassis):	21.59 inches (549mm)
Front Track:	9.78 inches (249mm)
Rear Track:	9.78 inches (249mm)
Ground Clearance:	3.14 inches (80mm)
Weight:	6.42lb (2.91kg)
Height:	9.4 inches (239mm)
Wheelbase:	12.8 inches (324mm)
Front Shock Length:	3.54 inches (90mm)
Rear Shock Length:	3.54 inches (90mm)
Front Wheels:	1.9 x 1.02 inches (49 x 26mm)
Rear Wheels:	1.9 x 1.02 inches (49 x 26mm)
Front Tires:	4.64 x 1.89 inches (118 x 48mm)
Rear Tires:	4.64 x 1.89 inches (118 x 48mm)
Approach Angle:	52°
Departure Angle:	49°

Breakover Angle:	58°
Hex Size:	12mm
Speed Control:	XL-5 HV
Motor (electric):	21T Reverse Rotation
Transmission:	2-speed Hi-Lo, Remote Shifting
Gear Pitch:	32P
Differential Type:	4 Gear, Remote Locking
Chassis Structure / Material:	Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft Driven 4WD
Steering:	Chassis Mounted Servo
Servo:	2075X Metal Gear
Transmitter:	TQi^™ 2.4 GHz 4-Channel Transmitter
Receiver:	6533
Skill Level:	1
Battery Tray:	158.75 L x 47 W x 23/26mm H

Motor Specs

Type:	High-torque brushed motor
Size:	550
Weight:	390g (13.76oz)
Length:	3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
Turns:	21T reverse rotation
Voltage:	16.8V

ESC Specs

Input Voltage:	6–7 Cells NiMH, 2–3s LiPo
Case Size:	1.23” W x 2.18” D x 1.04” H
Weight:	2.6oz (74g)
Motor Limit:	21-turns (550 size)
On Resistance Forward:	0.004 Ohms
On Resistance Reverse:	0.004 Ohms
Peak Current - Forward:	100A
Peak Current - Reverse:	100A
Braking Current:	60A
Continuous Current:	18A
BEC Voltage:	6.0 VDC
BEC Current:	1A
Power Wire:	14 Gauge / 5”
Input Harness Wire:	26 Gauge / 14.5”

Transistor Type:	MOSFET
PWM Frequency:	1700Hz
Low Voltage Detection (LVD):	2-Stage indicators, switchable (on or off)
Thermal Protection:	Thermal Shutdown
Profile selection:	Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup:	Yes, Traxxas EZ-Set^®
