Kit and Kaboodle Williams Lake

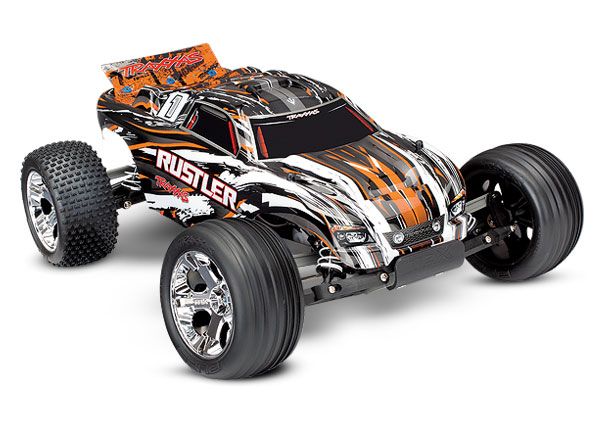

Traxxas Rustler Brushed 1/10 RTR Stadium Truck Orange, XL-5 ESC, 12t motor, 7 cell NiMH battery, 4A DC charger

Traxxas Rustler Brushed 1/10 RTR Stadium Truck Orange, XL-5 ESC, 12t motor, 7 cell NiMH battery, 4A DC charger

Regular price $309.99 CAD
Regular price Sale price $309.99 CAD
Sale Sold out

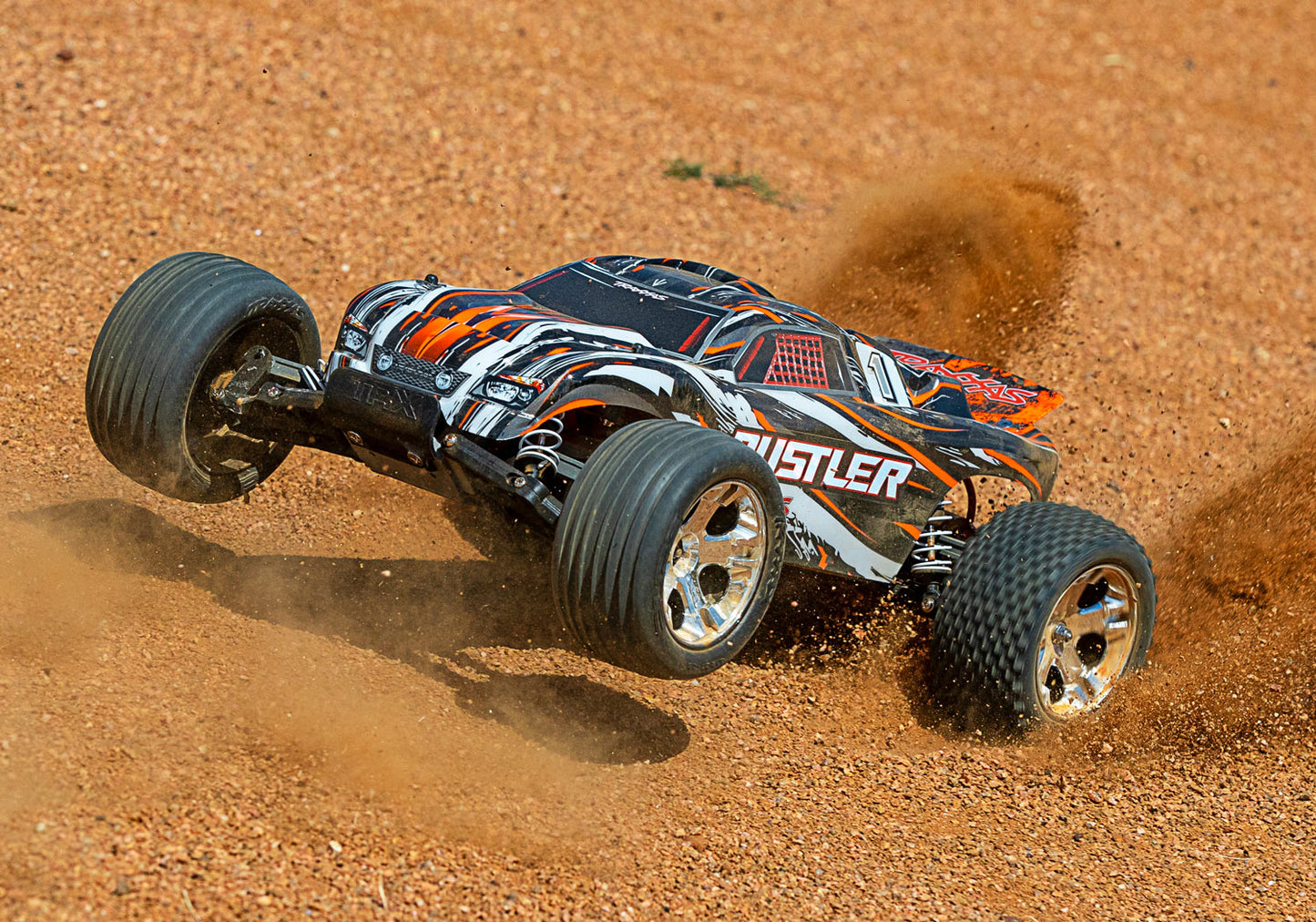

The Traxxas Rustler XL-5®

Waterproof for More Power and More Fun!

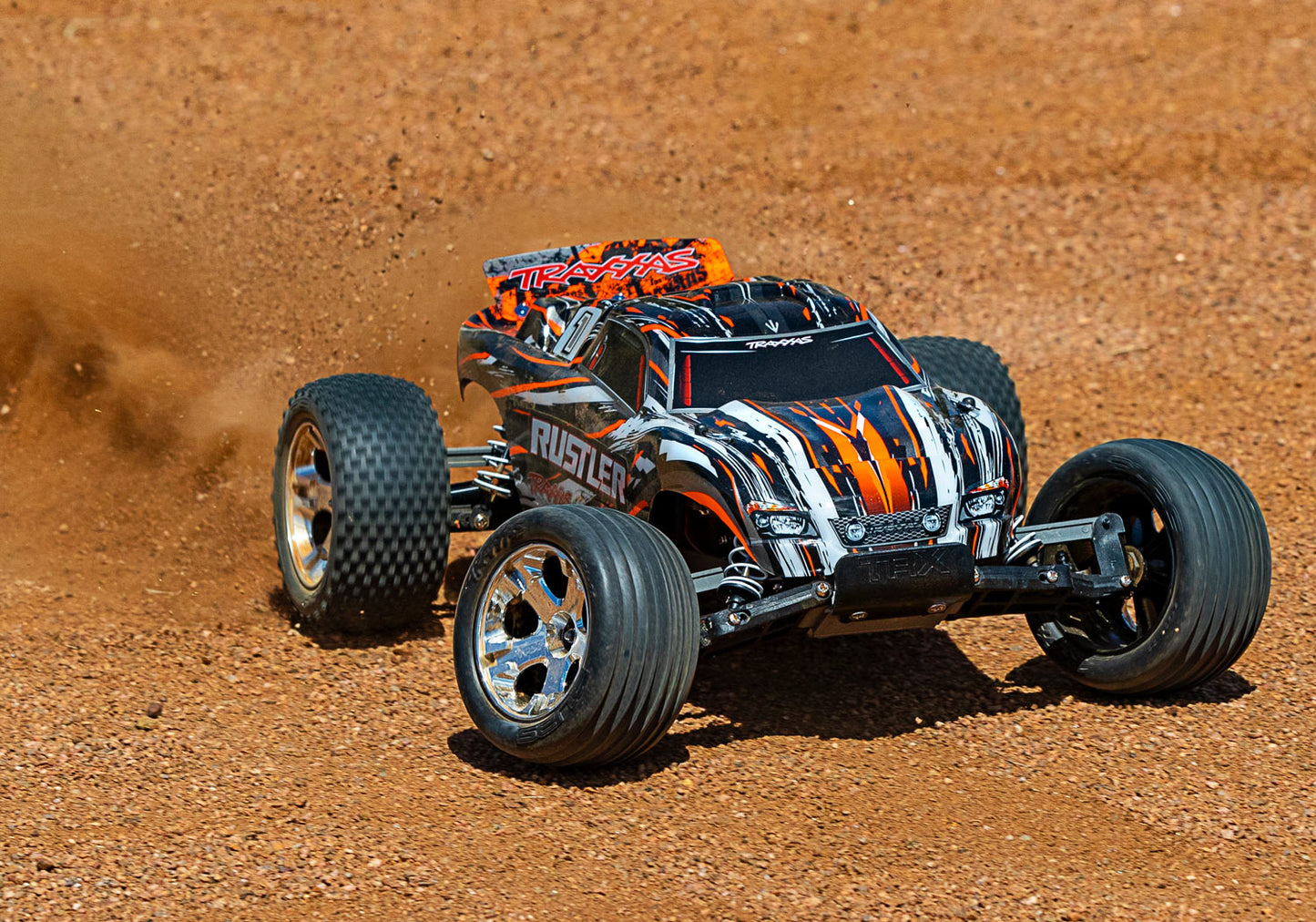

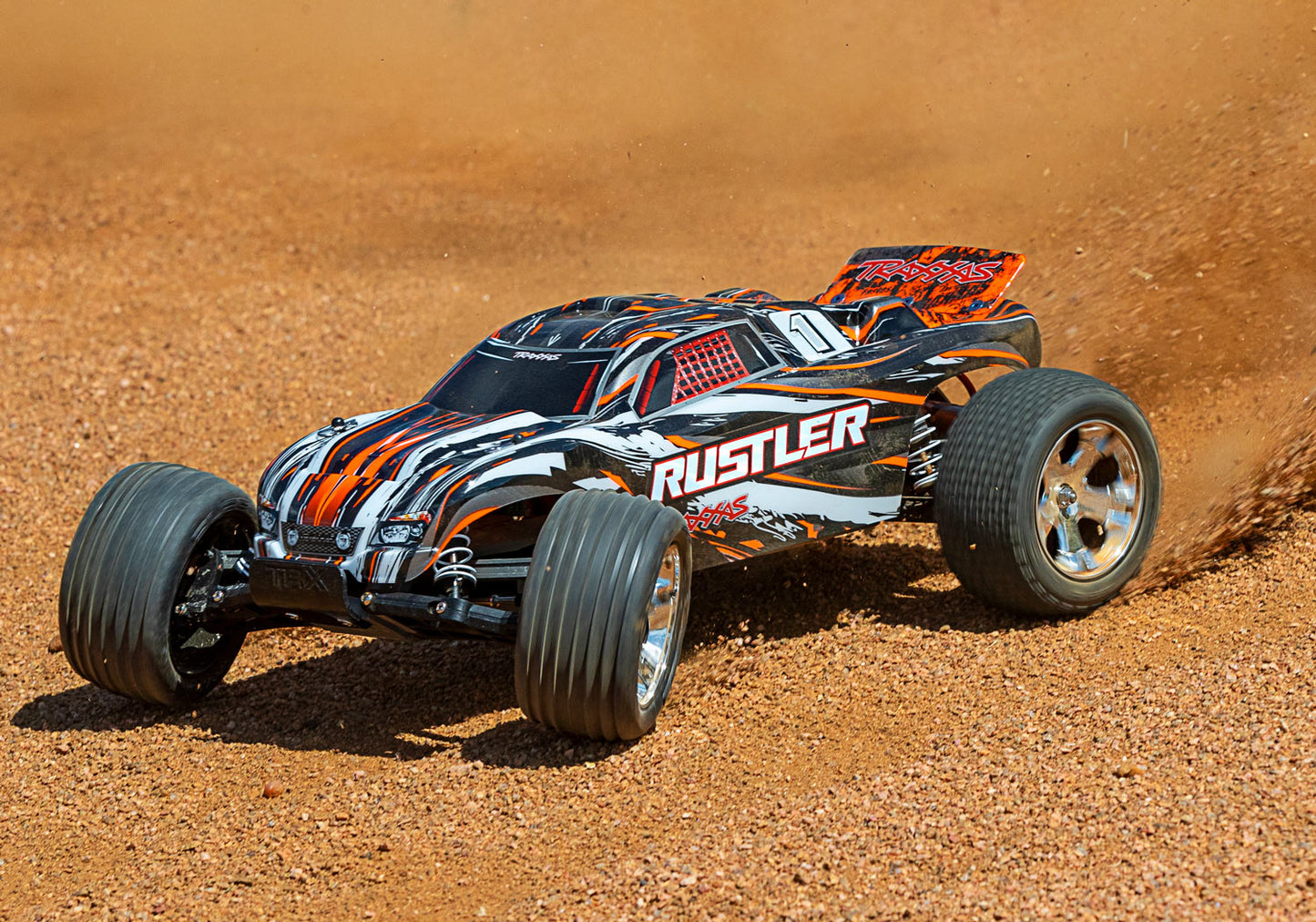

The Traxxas Rustler is known for its rugged fun and superior performance. It outperforms the competition with its powerful motor, smooth control, and excellent grip. It is one of the fastest Ready-To-Race® electric trucks available, capable of reaching speeds of 35+mph*. The Rustler is designed for off-road action, allowing for power-sliding and full-throttle driving. It is also equipped with Traxxas' exclusive waterproof electronics, enabling it to tackle puddles, mud, and even snow. The possibilities for R/C adventures with the Rustler are endless, limited only by your imagination. Leave everything else on the workbench and experience the thrill of the Traxxas Rustler.

  • 4-amp DC Peak Detecting Fast Charger
  • Traxxas 3000mAh, 8.4V, 7-cell NiMH battery with iD®
  • TQ 2.4GHz radio system
  • Waterproof electronics for all-weather driving excitement
  • 35+mph* top speed!
  • Titan® 12-turn 550 modified motor
  • XL-5 waterproof electronic speed control
  • Number-1 selling 1/10 stadium racer
  • Equipped with patented Traxxas' High-Current Connector

Sealed Electronics Extend Your Driving Fun

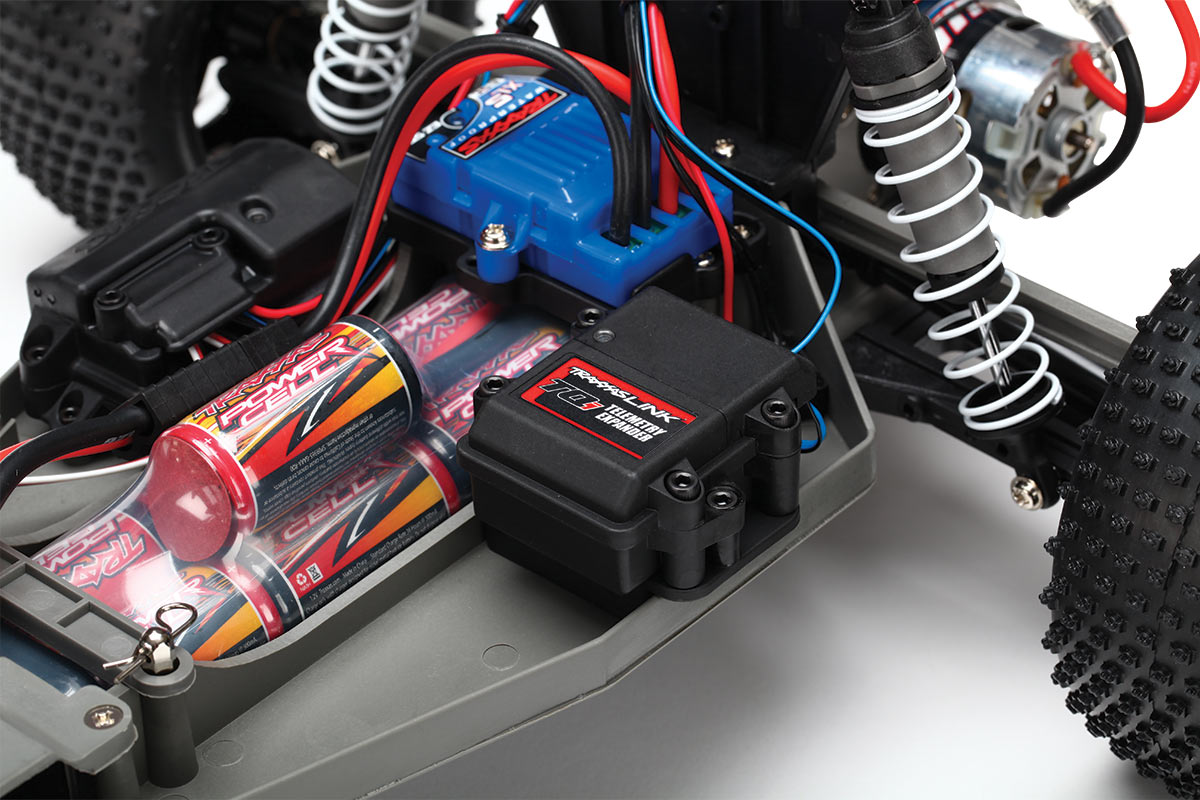

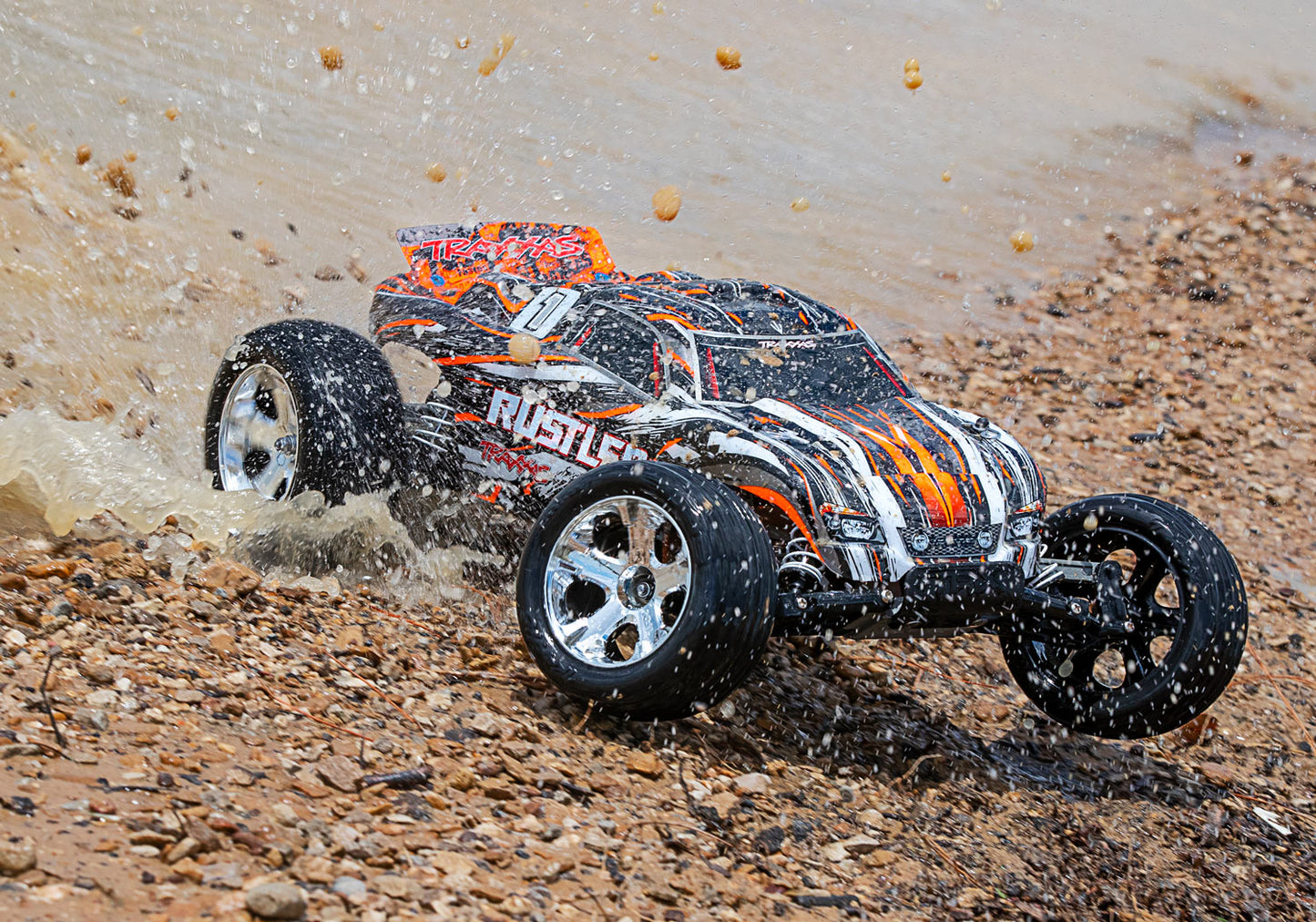

That's right! The Rustler's watertight and sealed electronics, including the XL-5 electronic speed control and mini receiver, are designed to withstand wet-running conditions. This means you can confidently drive through water, mud, snow, and other challenging environments without worrying about damaging the electronics. The sealed design ensures reliable performance and allows you to explore new terrains and have exciting adventures with your Rustler. So go ahead and splash through puddles, tackle muddy trails, and enjoy the thrill of off-road driving without any limitations. The Rustler's waterproof electronics truly open up a whole new world of adventure and fun!

Modified Muscle

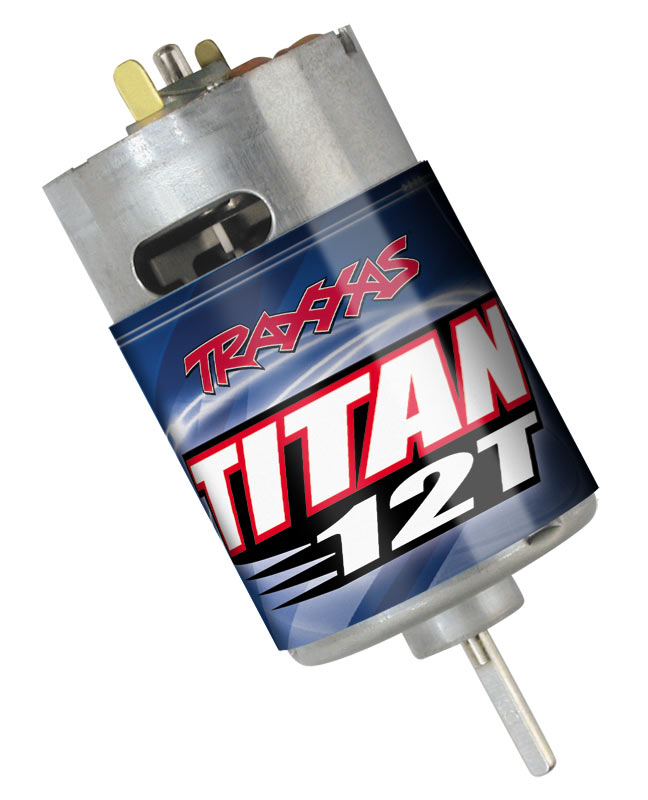

The Titan 12T 550 modified motor is a powerhouse, delivering impressive mod-motor power while requiring minimal maintenance. It ensures long-lasting performance and reliable operation. The motor's integrated cooling fan helps to keep temperatures low by pulling cool air through vent tunnels molded into the motor plate. This cooler running motor translates to faster speeds, longer runtime, and extended motor life.

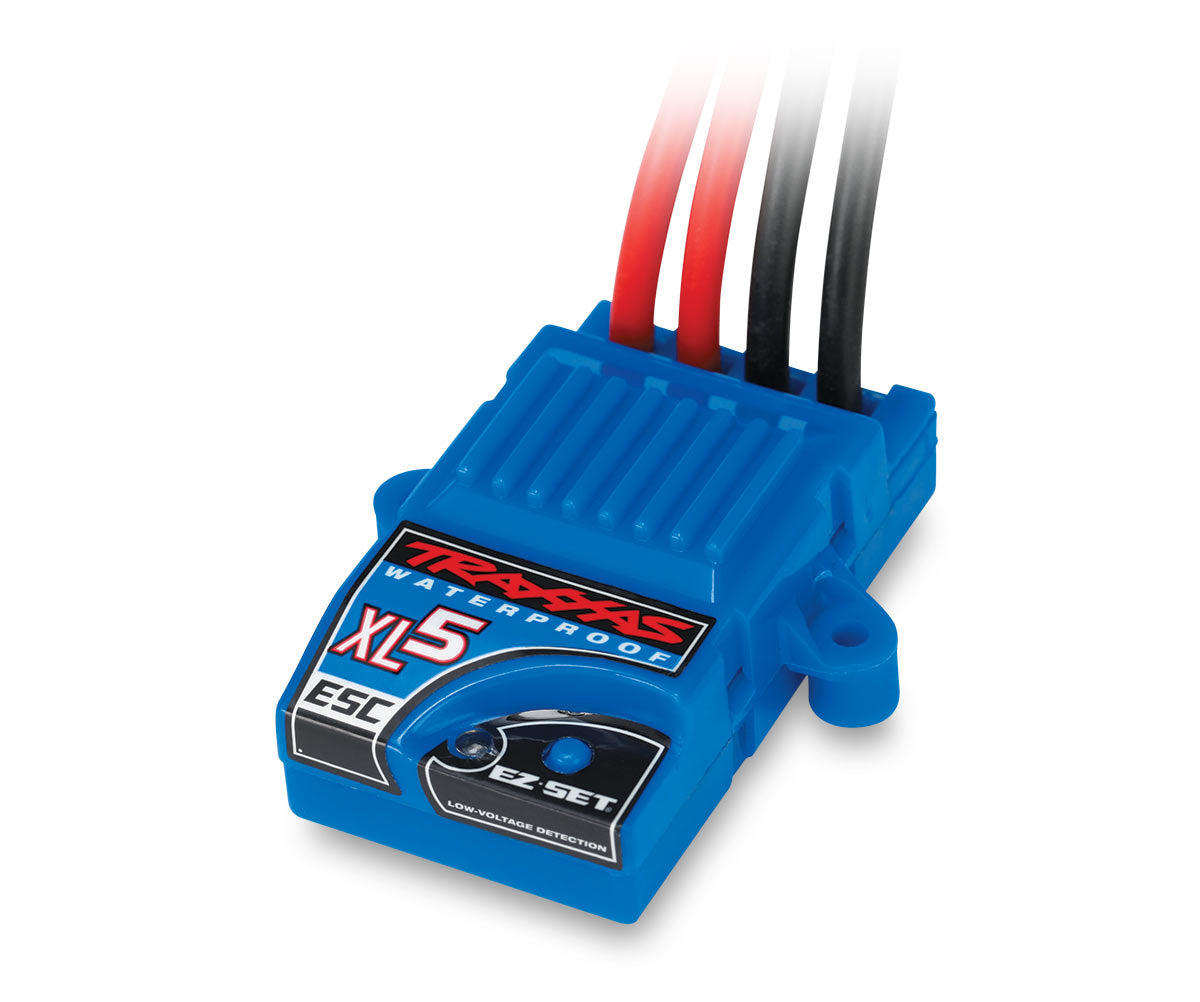

The XL-5 Electronic Speed Control (ESC) is another standout feature of the Rustler. It is capable of handling high currents, providing smooth and precise control over the truck's speed. The EZ-Set one-button setup makes it easy to program and customize the ESC to suit your driving preferences. The ESC also features three drive profiles, allowing you to choose between different levels of performance. It includes low voltage detection and thermal shutdown protection to ensure the safety and longevity of your electronics.

The XL-5 ESC is equipped with gold-plated connectors, which offer low resistance and efficient power transfer. This, combined with the patented Traxxas High-Current Connector, allows for unrestricted current flow, maximizing the performance potential of the Rustler.

Overall, the combination of the Titan 12T 550 motor and the XL-5 ESC provides the Rustler with exceptional power, control, and durability. It's a winning combination that ensures thrilling off-road adventures and endless fun.

RUSTLER (#37054-1) SPECS

Length: ­ 17.5 inches (445 mm)
Front Track: ­ 12.25 inches (311 mm)
Rear Track: ­ 12.25 inches (311 mm)
Weight: ­ 59.6 ounces (1.69 kg)
Height (overall): ­ 7 inches (178 mm)
Wheelbase: ­ 11.38 inches (289 mm)

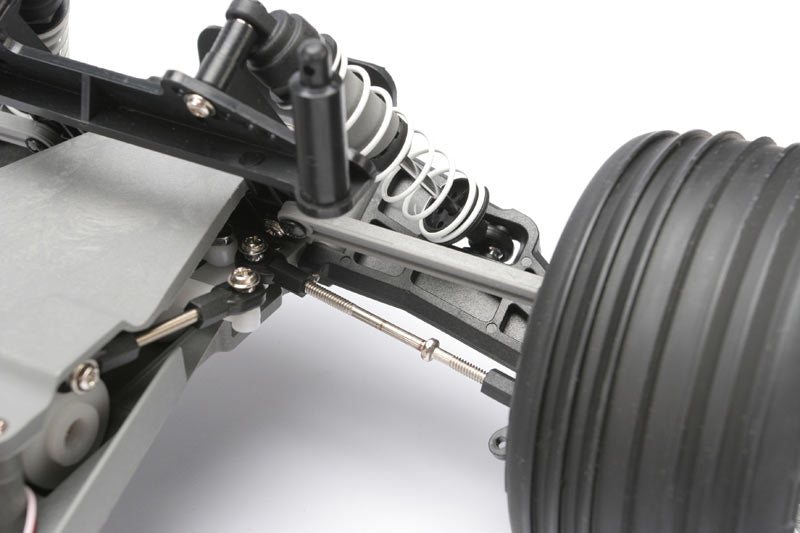

Front Shock Length: ­ Long
Rear Shock Length: ­ XXLong
Front Tires (pre-glued): ­ Alias® Ribbed 2.8"
Rear Tires (pre-glued): ­ Alias® Step-Pin 2.8"
Front Wheels: ­ 2.8" Mirror-Chome (All-Stars™)
Rear Wheels: ­ 2.8" Mirror-Chome (All-Stars™)
Electronic Speed Control: ­ XL-5™ Electronic Speed Control
Motor (electric): ­ Titan® 12T 550 (12-turn 550)
Steering Servo: ­ #2056 High Torque Waterproof
Transmitter: ­ TQ 2.4GHz Radio

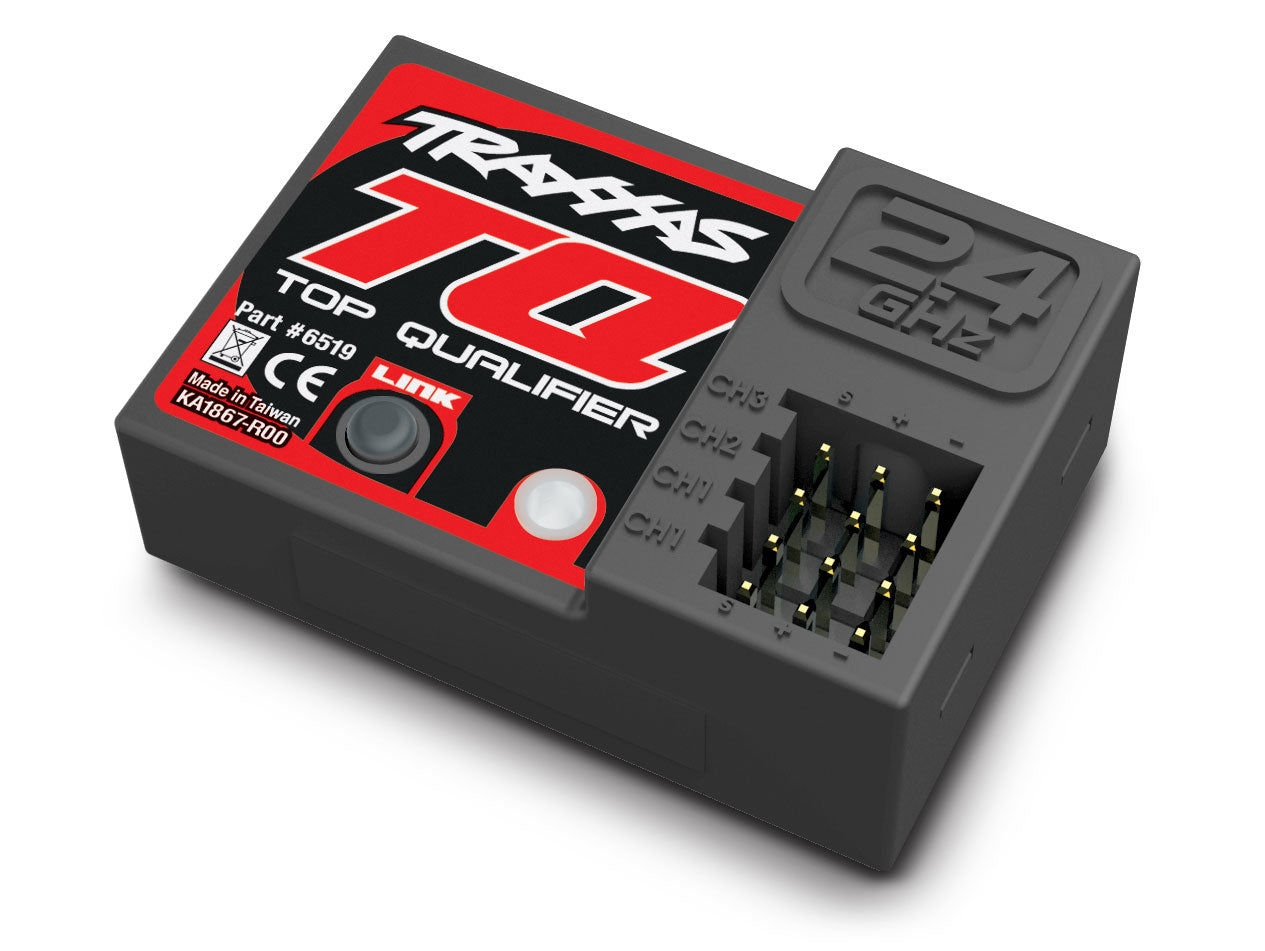

Receiver: ­ #6519 TQ 3-Channel Micro
Gear Ratio (internal): ­ 2.72 (final drive: 10.17)

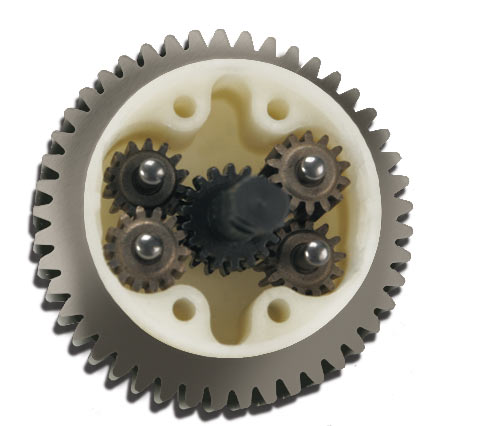

Differential Type: ­ Planetary
Gear Pitch: ­ 48-Pitch

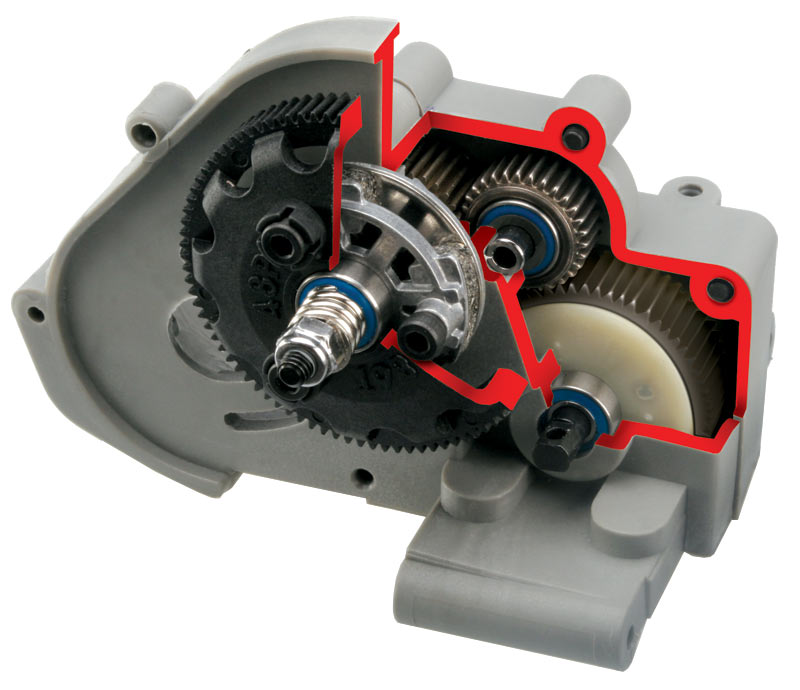

Transmission: ­ Magnum 272™

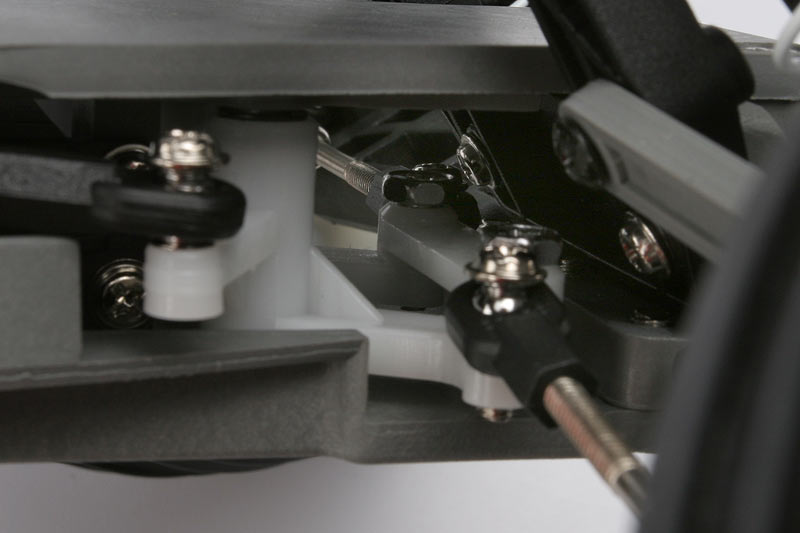

Steering: ­ Bellcrank

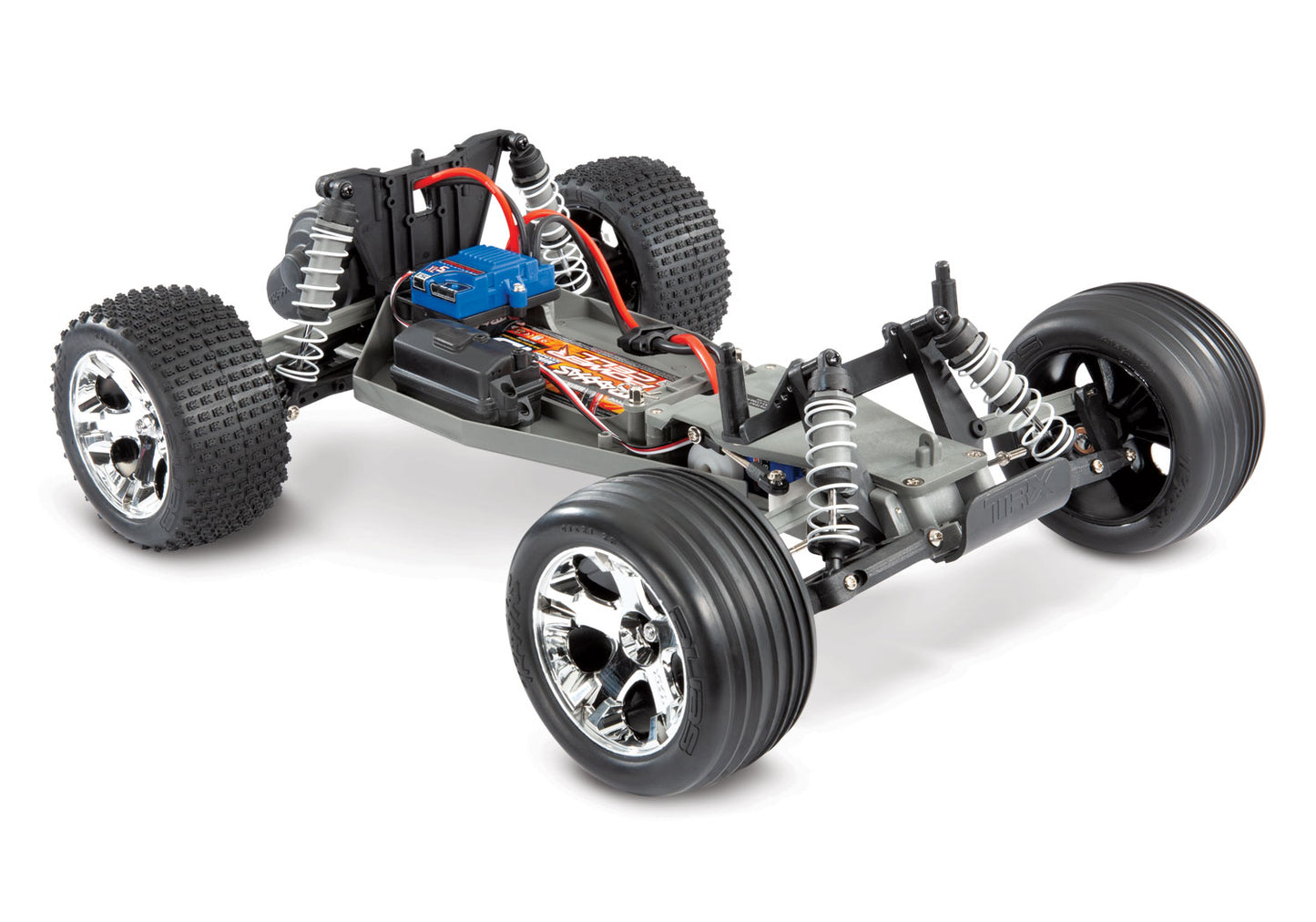

Chassis Type: ­ Modified Tub
Chassis Material: ­ Composite Nylon
Top-Speed: ­ 35+mph**
Skill Level: ­ 1
*Battery Tray Dimensions: ­ 166 mm x 47.5 mm x 28 mm
Included Charger: ­ Traxxas 4-amp DC Peak Detecting Fast Charger
Included Batteries: ­ Traxxas Power Cell 3000 mAh, 8.4V, NiMH Battery with iD®
Required Batteries: ­ 4 "AA" (transmitter)




XL-5 (WATERPROOF) ESC SPECIFICATIONS

Input voltage: ­ 4-7 Cells (4.8 to 8.4 Volts DC)
Case Size: ­ 31 mm x 55 mm x 15.5 mm
Weight: ­ 2.44 ounces
Motor Limit: ­ 15-turns** (540 Size)
12-turns** (550 Size)
On Resistance Forward: ­ 0.007 Ohms
On Resistance Reverse: ­ 0.014 Ohms
BEC Voltage: ­ 6.0 VDC
BEC Current: ­ 1A
Power Wire: ­ 14 Gauge / 5 inches
Input Harness Wire: ­ 26 Gauge / 9 inches
PWM Frequency: ­ 1600 Hz
Low Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off)
Thermal Protection: ­ Thermal shutdown
Profile selection: ­ Sport Mode:
    100% FWD, 100% brakes, 100% REV
Race Mode:
    100% FWD, 100% brakes, no REV
Training Mode:*
    50% FWD, 100% brakes, 50% REV
Single-button setup: ­ Yes, Traxxas EZ-Set®
